Description

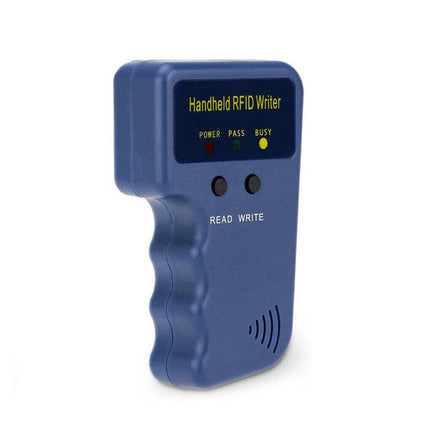

Handheld RFID ID Card Copier Reader Writer Writable Tags
Description:
Handheld 125KHz RFID Copier ID Reader Writer Access Control Card Duplicator Cloner Encryption Card Writer Smart Key Copier
Description:
ID (em4100) access control card copy/copier adopts Mini handheld mold, which is ergonomic and easy to carry;
Using Silicon Labs international advanced chip manufacturer chips, all work is done by this chip, the product is more integrated, more stable and reliable;
Adopt excellent program algorithm and circuit design to reduce power consumption and extend battery life;
It adopts the design of read key and write key, which is more convenient to operate; all ID (em4100) cards can be copied for multiple purposes.
Specification:
Product size: 117*70*30mm/4.6*2.75*1.2in
Product weight: 80g
Frequency: 125kHz
Power supply: 2 x AAA batteries( not included)
Distance: The read-write distance of the keychain can reach 2.5cm, and the card can reach 6cm.
Instruction:
1. Start the copy machine
Push the switch on the right side of the copy machine upwards, the red light is always on, the green light and yellow light flash once, and the buzzer sounds once, which means the startup is successful, otherwise it can be restarted once.
When the duplicator starts, there is no card reading at this time, and then press the right key of the duplicator to write the card, you can write an ID card with all 0s. After the writing is successful, the buzzer will sound 2 times.
2. Copy ID
Push the switch on the right side of the copying machine upwards, the copying machine will beep, the green light and yellow light will flash once, indicating that the startup is successful;
First put the old card on the left side of the copy machine, press the left button of the copy machine to read the card, the card reader drops 2 to indicate that the card is read successfully, and the green light is on at the same time;
For a new card, press the right button of the copy machine to write to the card.
The reader beeps twice to indicate that the card is written successfully, and the yellow light is on at the same time.
The clone card is completed.
Package includes:
1 * Replicator(Battery is not included.)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
