Specification:
Certification: CE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Type: Digital Only
Model Number: Energy Meters
Phase: single phase
Material: Plastic
Accuracy: Level 1
Reference voltage: 220V/230V 50/60Hz
Reference current (maximum current): 5 (80) A
Insulation performance: AC voltage 4KV for 1min, pulse voltage of 1.2/50us 6KV waveform

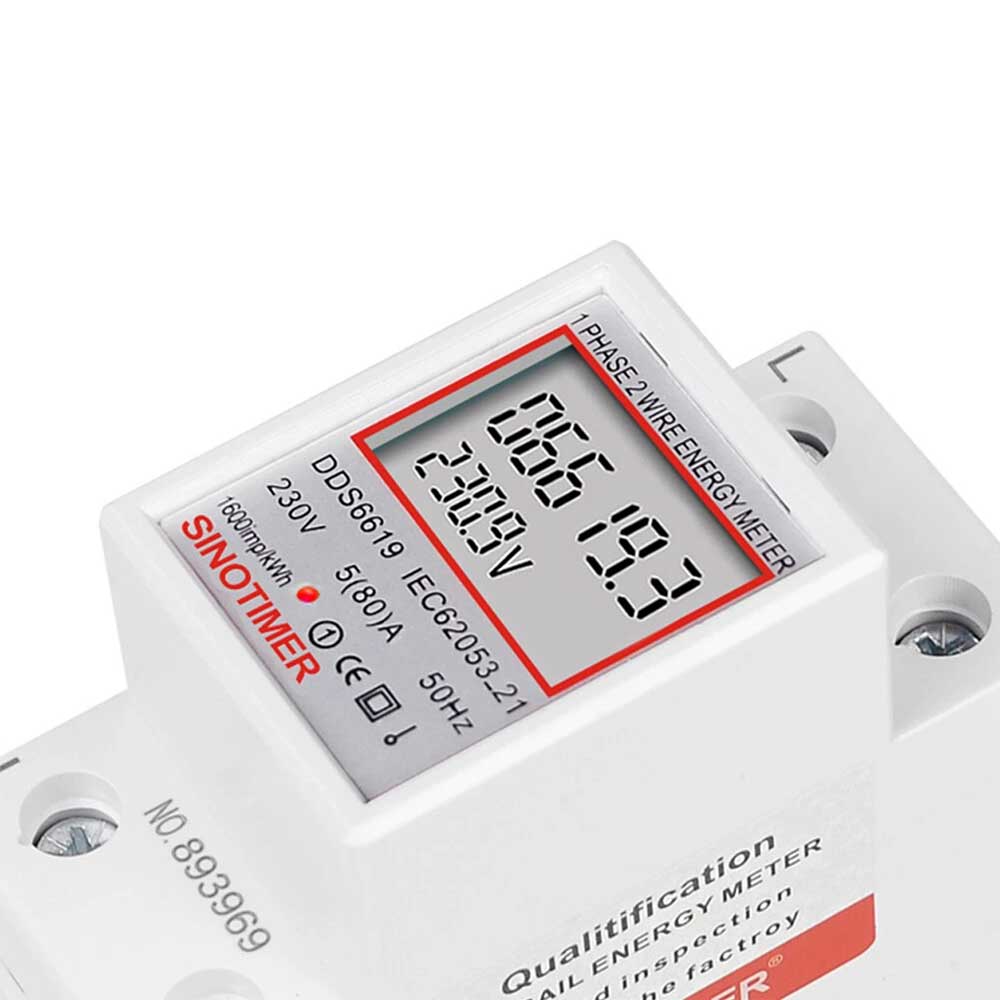

Display: LCD backlit digital display
Installation: 35mm DIN rail

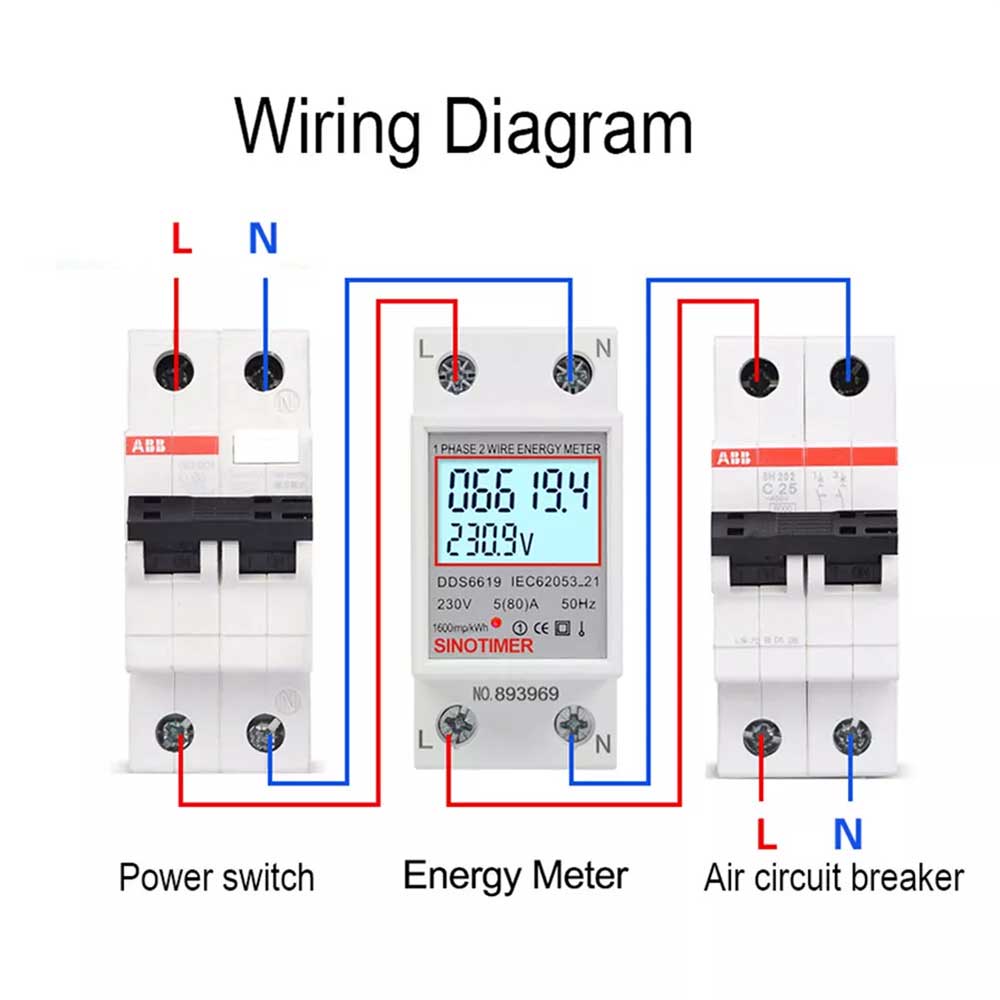

Wiring method: up and down / up and down
Power: 17000W
Current rate: 1600imp/kwh
Ambient temperature: -20℃~+50℃
Pole width: 17.5mm / 0.7in
Function: display power, voltage, current, frequency, power factor

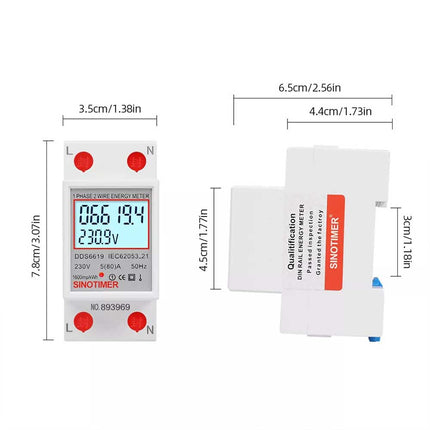

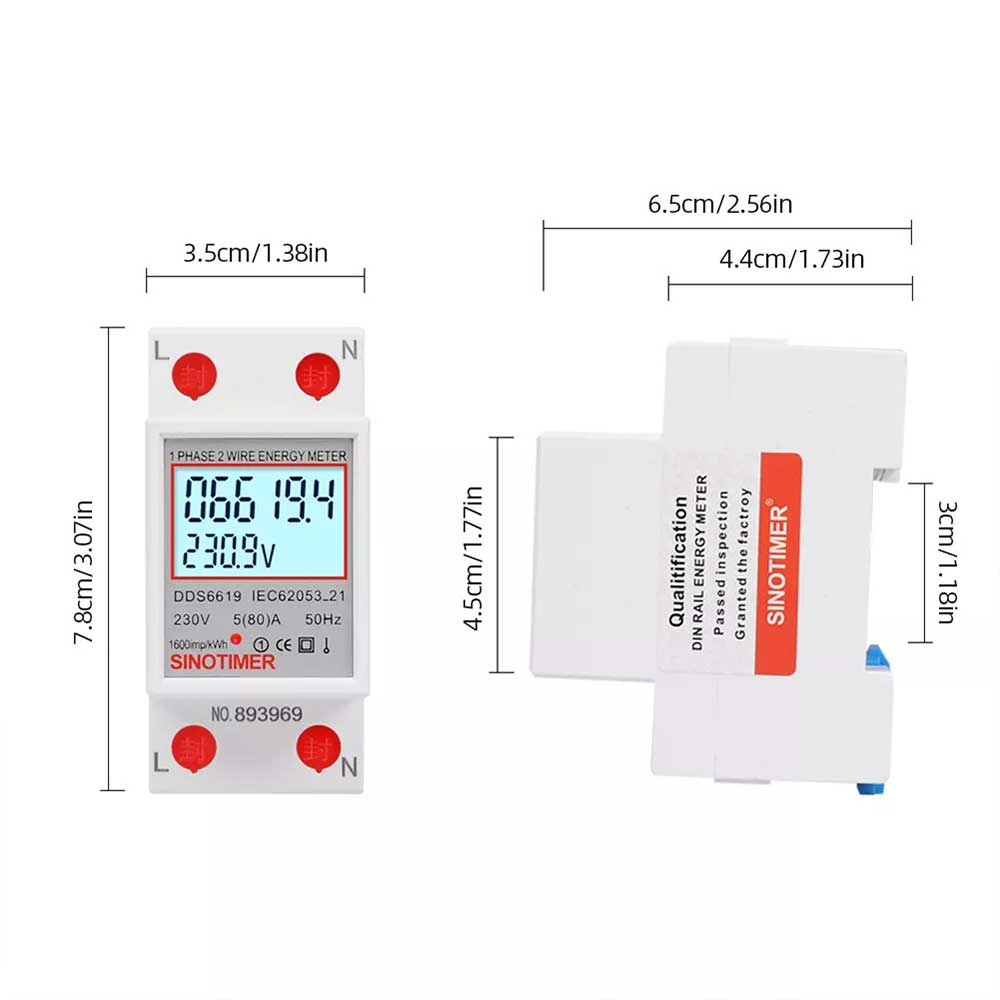

Size: about 78x65x35mm/3.07x2.55x1.37incih

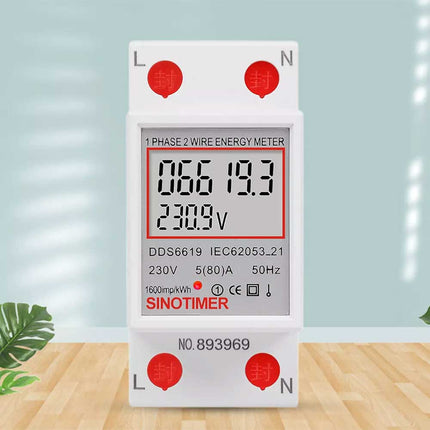

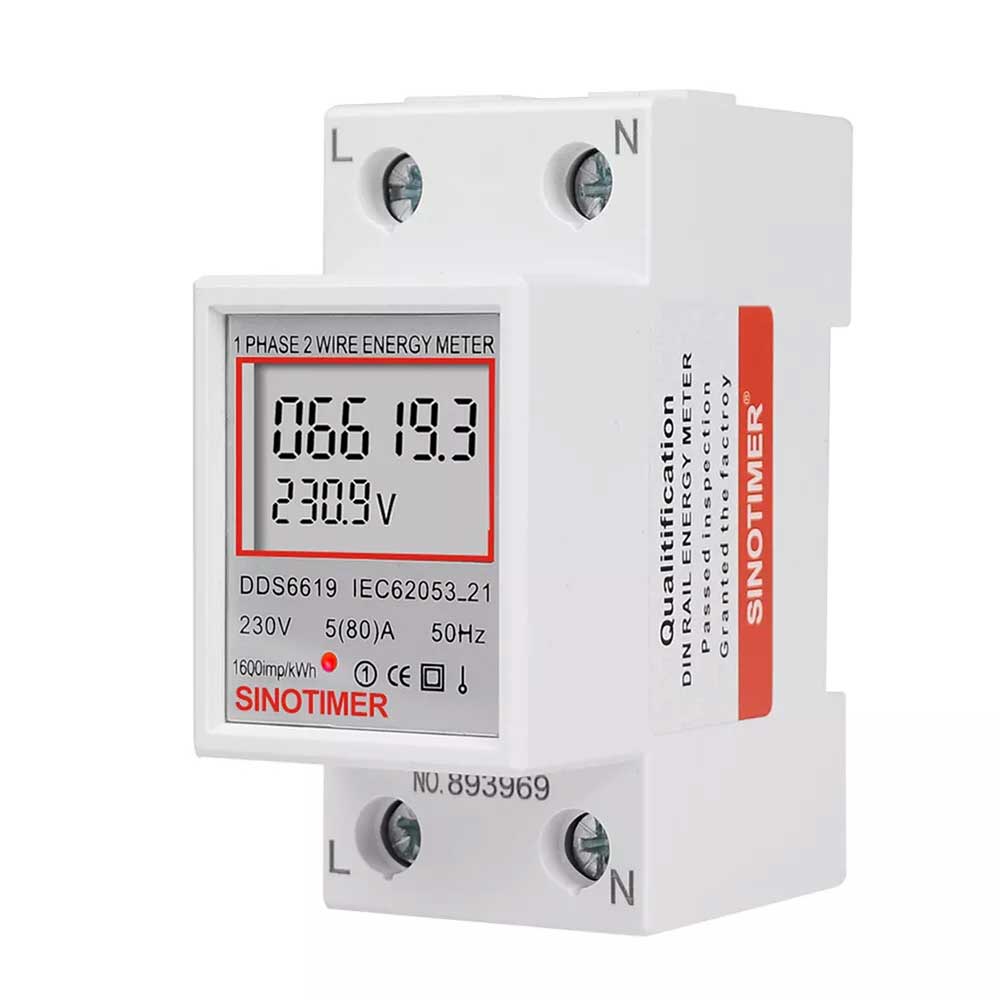

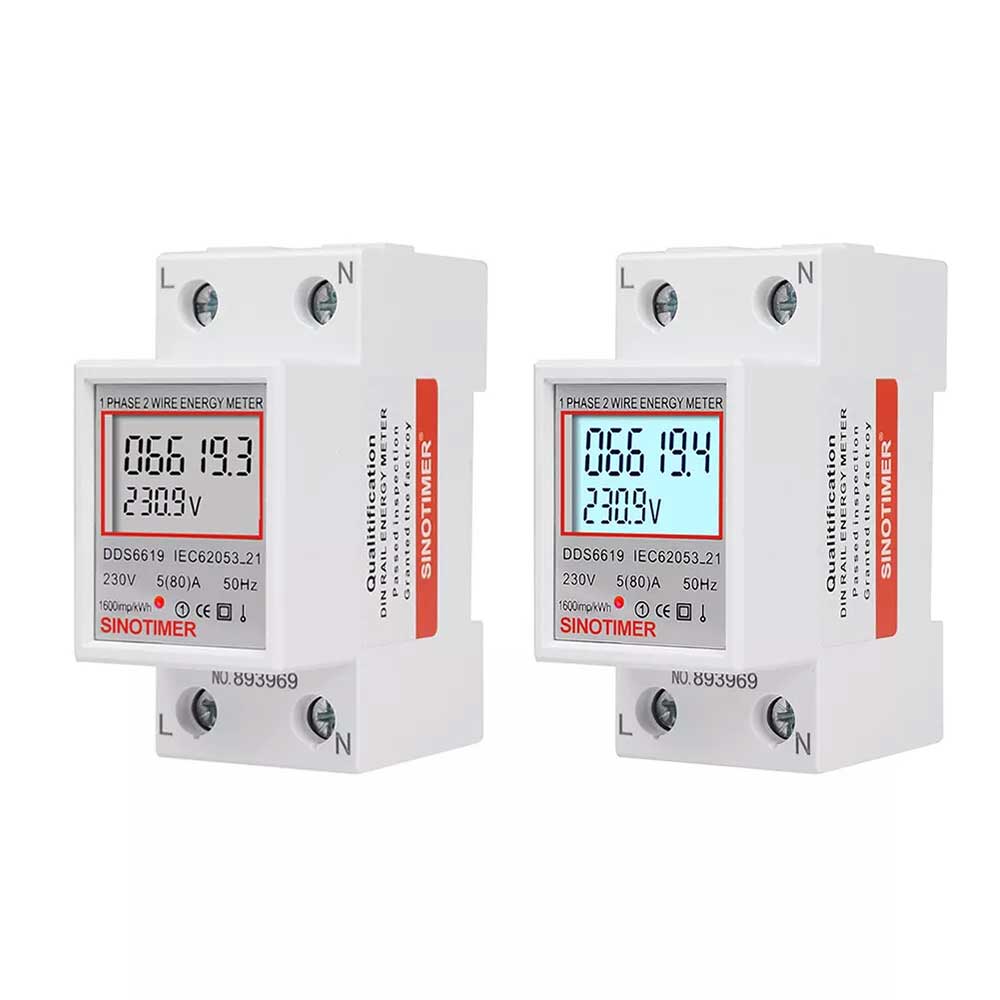

Product type: without backlight (A), with backlight (B) (optional)

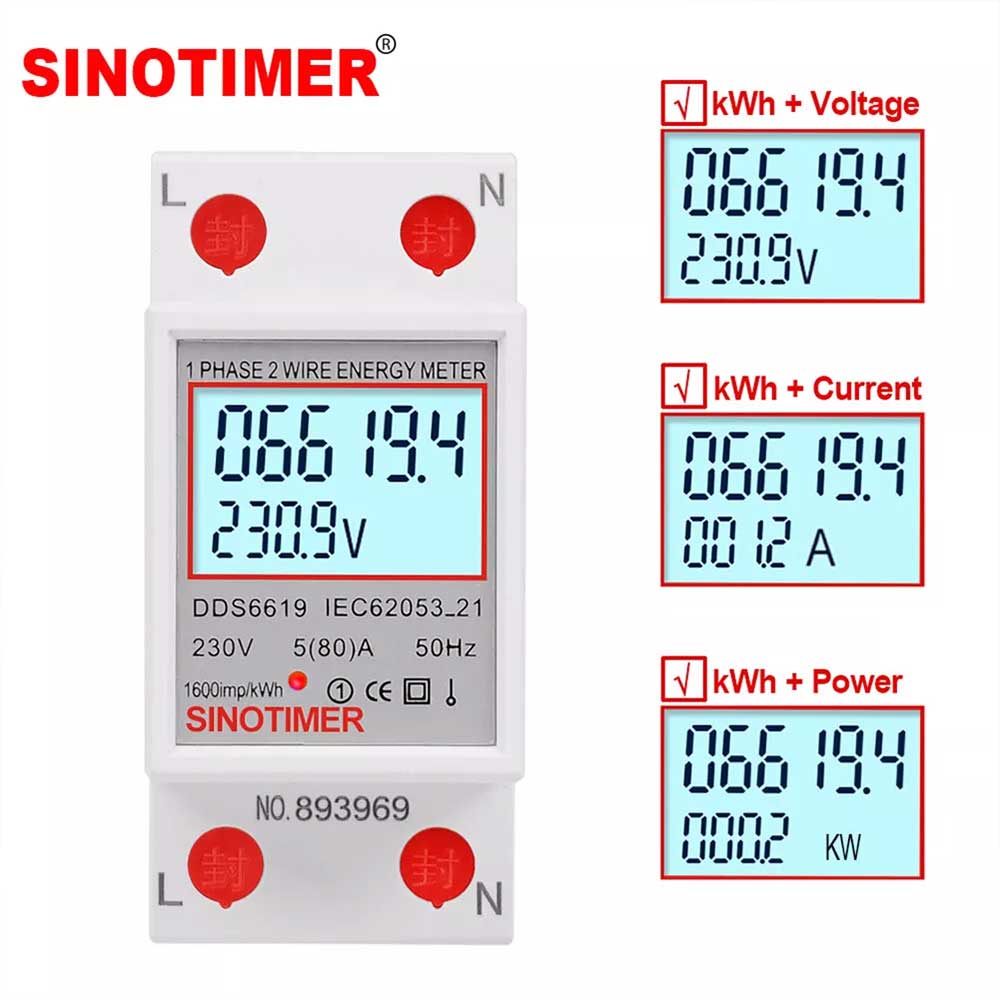

Description: Display various parameters, the upper line of the display is the total power consumption kWh is always displayed, and the lower line is automatically displayed in rotation (voltage V, current A, power KW)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Included

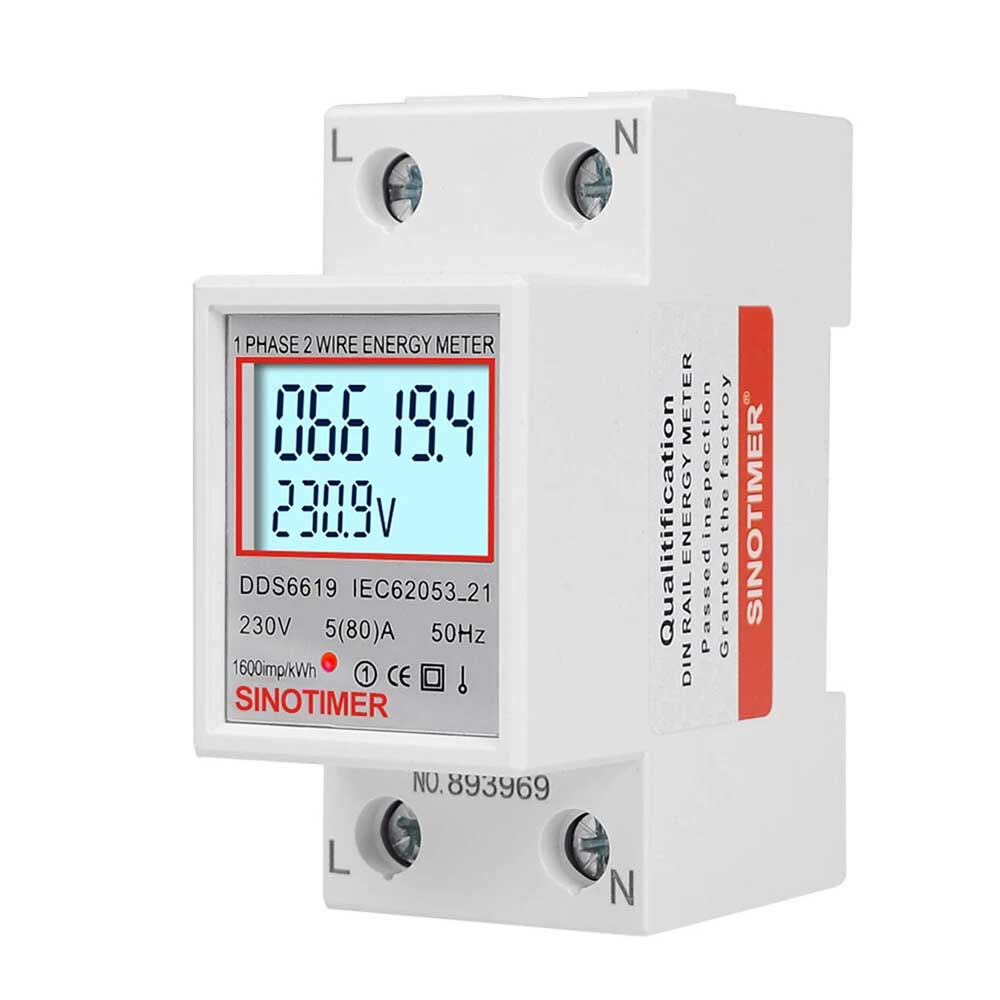

1 x Single Phase Energy Meter
