Highlight description:
[Multifunctional] Thickness gauges are used to measure the thickness of metal coatings and other coatings such as paint/enamel/chrome on steel, paint and anodized coatings on aluminum/copper. Automatic detection of substrate properties. It has small size and high precision battery level indicator. It also has automatic shutdown function, used for FE/NFE.
[Widely Uses] It is used to non-destructively measure the thickness of coatings and paints. It is an essential equipment for material surface treatment, widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other fields, and can also work stably in laboratories, workshops and outdoors. Suitable for automotive paints, powder coatings, anodized aluminum, bathroom accessories, bicycle frames, stadium seating, outdoor sheds, furniture, swings, cabinets and lockers, computers, appliances, toys, etc.
[Precision Integrated Probe] It is important to check the car paint to make sure the paint thickness is about the same on each panel and to determine if the car is in good condition with a car paint inspection thickness gauge when you buy the car. The instrument adopts the principles of electromagnetic induction (F probe) and eddy current effect (N probe) to automatically detect the properties of the substrate.

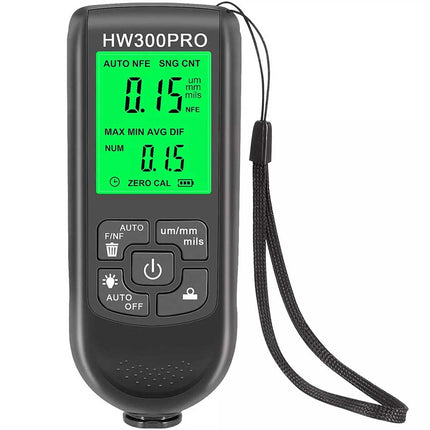

[What Can Be Read and Detect Paint Depth] The large LCD display of the paint depth gauge shows the metal type, operating mode, quantity, battery status and the reading in µm, mm or mils. The thickness gauge has a measurement range of 0-2000um, an accuracy of ±(3%+1um), and a resolution of 0um-999um (1um).
[Record Various Data] It can record the average value, maximum value, minimum value, dif at the same time, and supports up to 50 data for statistics, making the numerical data you measure more accurate and convenient. If the auto power off function is on and there is no operation for 3 minutes, the instrument will automatically shut down to save battery power.
Detailed description:
Product Name: Paint Thickness Gauge Meter
Material: ABS
Ultra-precision resolution 1um, FE/NFE coating measurement, automotive paint 0-2000um
Measuring Range: 0-2000UM
Measurement Accuracy: ±(3%+1UM)
Power: 2 1.5V AAA Batteries (Not Included)
Use Temperature: -10℃-50℃
The three measurement units are um-mm-mils
Certification: CE.FCC
Product + Packaging Weight: 109G
Color (Optional): White, Black
Parts List:
1×Coating Thickness Gauge
1×Manual
6×Calibration Sheet
1×Hand Rope
1×Substrate
