Description

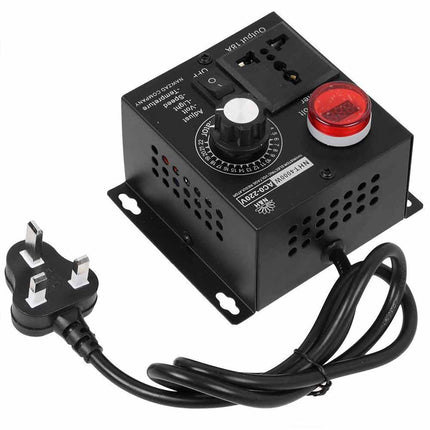

A 220V AC thyristor voltage regulator for compatible resistive loads and suitable series-wound motors. The rotary dial provides stepless output adjustment, while the metal housing and ventilation openings help manage heat.
Features
- Adjustable 0–220V AC output as listed
- Rotary stepless control
- Metal enclosure with ventilation
- Universal output socket and power indicator
- RC absorption, surge and spike protection as listed
Specifications
- Input: 220V AC
- Output: 0–220V AC adjustable
- Rated current: 9A
- Maximum current: 18A as listed
- Advertised maximum power: 4000W for resistive loads
- Plug: UK
Package Includes
- 1 × Variable voltage regulator with UK plug
Compatibility & Safety
- Mains-voltage equipment: the metal case must be safely earthed, and the plug, voltage and electrical approval must be suitable for your location.
- The 4000W figure is an ultimate resistive-load rating, not a continuous rating. The supplier states inductive loads should be limited to approximately one-third of the resistive rating.
- Use only with loads that explicitly support phase-angle voltage control. Not suitable for most brushless or induction motors, electronically controlled appliances, LED drivers or sensitive circuit boards.
- Output meter readings can be misleading without a load; the supplier specifies a load of at least 20W for measurement.
- Use in a dry, ventilated area with appropriate over-current and residual-current protection. A licensed electrician should perform any required wiring or adaptation.
